Supported head units
PIN codes are for Mercedes-Benz navigation map updates for these multimedia systems:
- HU35 - $50
- HU45 - $60
- HU5s1 - $60
- HU5 / HU5s2 - $60
- HU55 - $60
- HU6 - $100
- HU7 - $300
- Gen20x - $300
Note: your vehicle must have navigation support enabled (factory navigation / activated navigation option).
What you need
- Your car with supported head unit and navigation feature.
- USB flash drive (recommended: USB 2.0), enough capacity for the map package.
- A PC to download navigation files and copy them to USB.
- Stable power during update (engine running or charger recommended).
Tip: some head units are picky with fast USB 3.0 sticks — USB 2.0 is often the most compatible.
What to send after purchase
Please send these details to receive the correct PIN:
- VIN (17 characters)
- Head unit model (e.g. HU6)
- Region + map version you want to install (e.g. Europe V24)
Example:
Z9M1671235L000000, HU6, Europe V24
If something doesn’t match (wrong HU model / wrong region / wrong version), the update can reject the PIN.
How it works (step-by-step)
Purchase & receive instructions
After payment, you’ll receive the short instructions and the support contact to send your VIN + HU model + region/version.
Send your details
Send: VIN, head unit model, and the exact map region/version you want to install.
Get your PIN code
We generate and send the PIN that matches your vehicle + requested navigation package.
Download navigation files
Download the navigation package with Download Manager COMAND Hard-disc navigation to the USB drive exactly as provided (do not rename folders/files).
Make sure the flash drive is correctly formatted.
Start update in the car

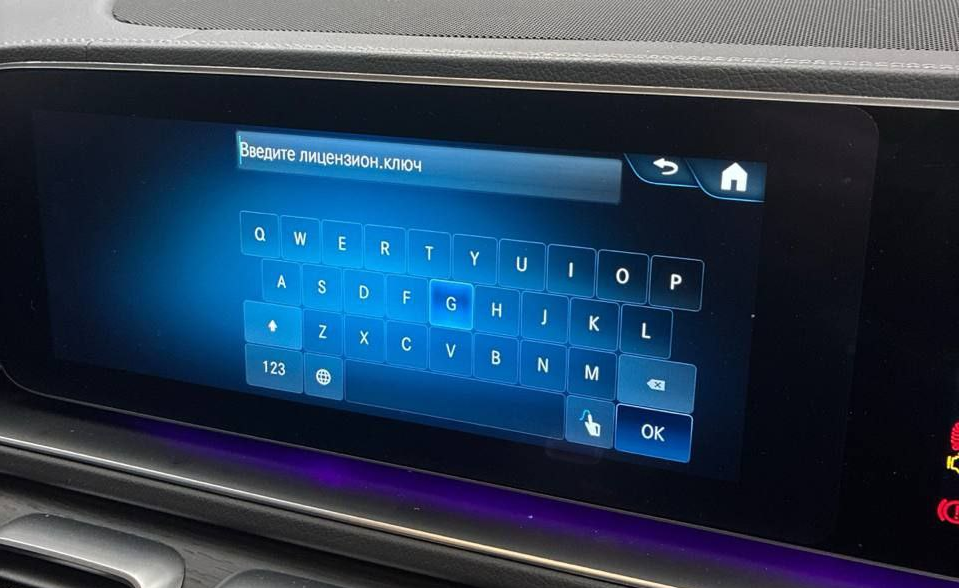

Insert the USB drive into the vehicle. The head unit will detect the update and prompt for a PIN code.

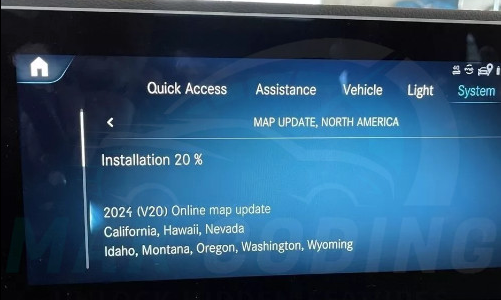

Enter PIN and wait
Enter the PIN. Navigation update will start automatically.
Keep power stable. Do not remove USB during the update.
Finish
When the update completes, the head unit will confirm. You can remove USB and use the updated maps.
Screenshots
Some screenshots.
FAQ
Which info is required to generate the PIN?
VIN (17 chars), head unit model (HU35/HU45/HU5/HU55/HU6/HU7/Gen20x), and the requested region + map version (example: Europe V24).
Do I need any special tools or coding?
No. The update is performed by the head unit itself via USB. You only enter the PIN when prompted.
What if my USB is not detected?
Try another USB stick (USB 2.0 recommended), ensure files/folders are not renamed, and use a common filesystem (often FAT32/exFAT/NTFS depending on package). Also try a different USB port if available.
Can I use one PIN for a different car?
No. PIN is generated for a specific VIN and navigation package.
Update stopped / power was interrupted — what now?
Restore stable power and retry with the same USB. Do not remove USB during update; keep engine running or use a charger to avoid voltage drops.
Need help?
If you’re not sure about your HU model or map version, contact support and we’ll help you identify the correct option.
